Building and Site Laser Scanning

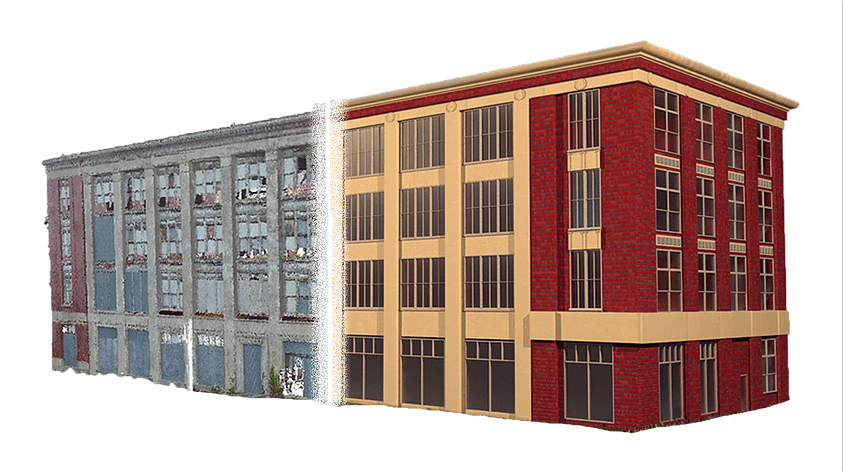

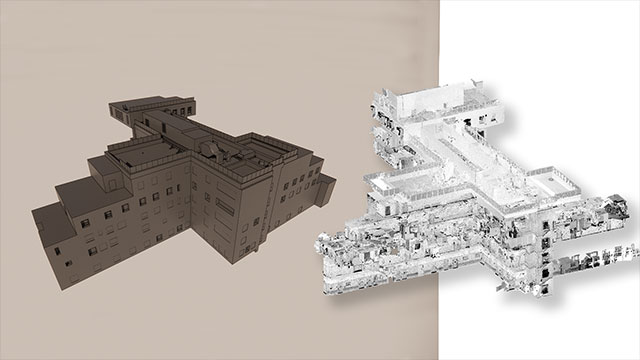

Reality Capture is the practice of digitizing the real world into a computer format. This can take the form of laser scanning, manual measurements, survey, or photogrammetry. Most Reality Capture projects will involve some combination of these techniques with the result being either a point cloud, mesh, or CAD/BIM model. In addition to geometric capture, some projects will also record and digitize extended data from the site. Items like serial numbers, make/model, manufacturer can all be captured and integrated into an Intelligent Model.
About Laser Scanning
3D Laser scanning, also known as HDS Surveying (High Definition Surveying) or LiDAR, is a technology that uses lasers to measure and capture the real world in 3D. Currently there are many different types of scanners each with varying speeds, accuracies, ranges, durability and general uses. At PMC we own and operate a fleet of equipment ensuing the best tool is used for the job in hand as no one scanner does everything.

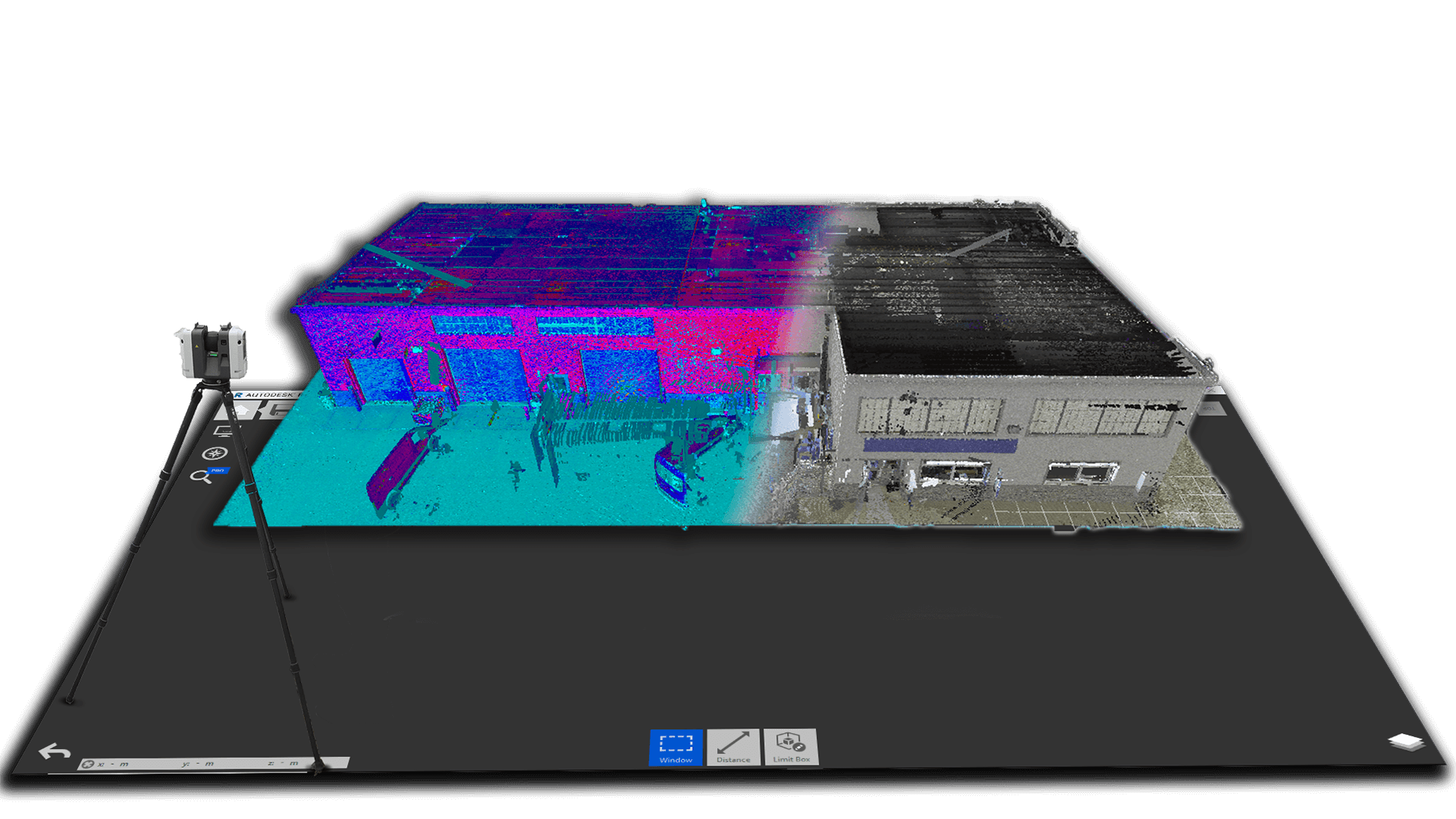

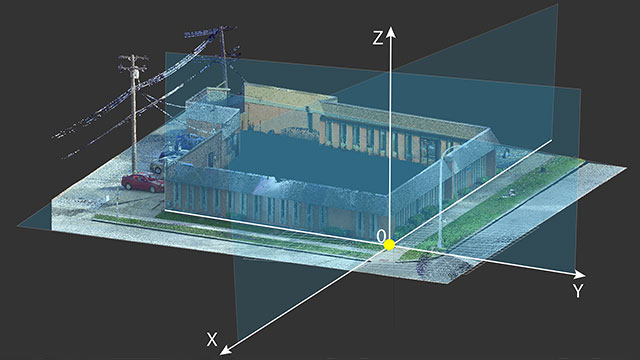

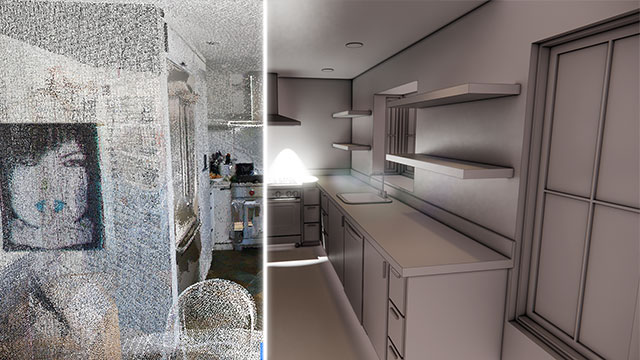

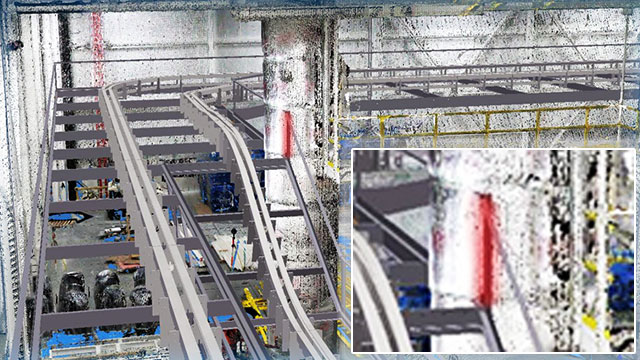

No matter which scanner is used the basic principle is the same. A laser is fired out and for every surface that the laser hits a point in space is recorded (xyz). At the same time the scanner will record the reflectivity of the surface giving an intensity value, and nowadays most scanners also have built-in cameras which provide color and an RGB value to each point. These points are captured at speeds of up to 1 million points of data per second creating a very dense point cloud of data.
PMC has been scanning for over 15 years. For more information on the history of laser scanning see our recorded webinar on the topic.
One of the newer technologies in Reality Capture, photogrammetry is the art and science of making measurements from photographs, especially for recovering the exact positions of surface points. Photogrammetry is as old as modern photography, dating to the mid-19th century and in the simplest example, the distance between two points that lie on a plane parallel to the photographic image plane can be determined by measuring their distance on the image, if the scale (s) of the image is known.
In the last few years computers and software have advanced to the point where large amounts of photos can be processed into 3D point cloud and model data. This data is similar to more traditional laser scan data but at a much-reduced accuracy.
Drone Capture and Aerial Photogrammetry

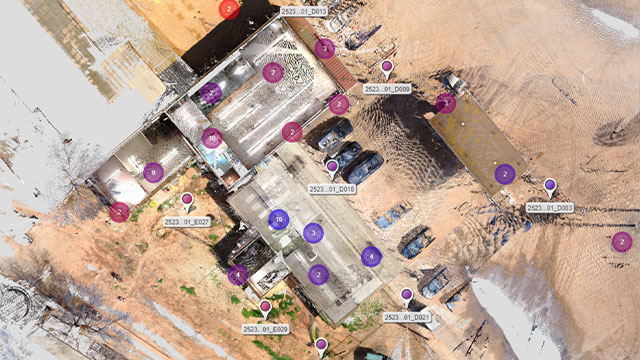

Traditional laser scanning methods can have limitations when there are large, inaccessible, or unsafe areas that need to be scanned. Under these circumstances, drones (UAV’s) need to be utilized to collect the necessary data. PMC has multiple FAA-certified drone pilots to capture the data of these locations. Photogrammetry takes the photos captured by the drone, creates a point cloud to measure the distances between components , and can be turned into a fully rendered 3D model.
Selecting a Source for Reality Capture
As the technology for Reality Capture has become more widespread so has the differences between quality service providers and sub-par ones. Choosing a reputable, proven provider can be the difference between success and failure on your scanning project.
- Using state of the art reality capture technology, PMC can digitize your facility.
- 3D laser scanning captures existing as-built conditions of any structure.
- Terrestrial scanning- any size from a single tree to some of the world’s largest buildings.
- With drone capture and photogrammetry, we can capture large or otherwise inaccessible areas.
Get to know more of our services

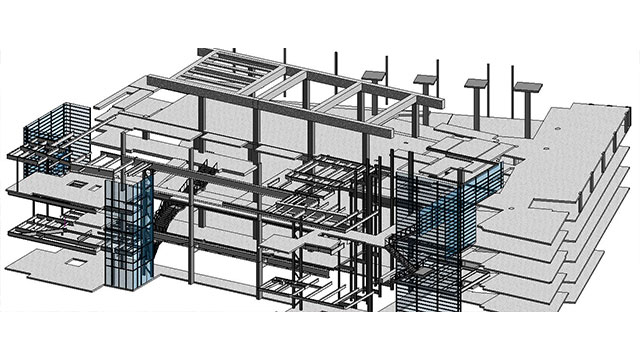

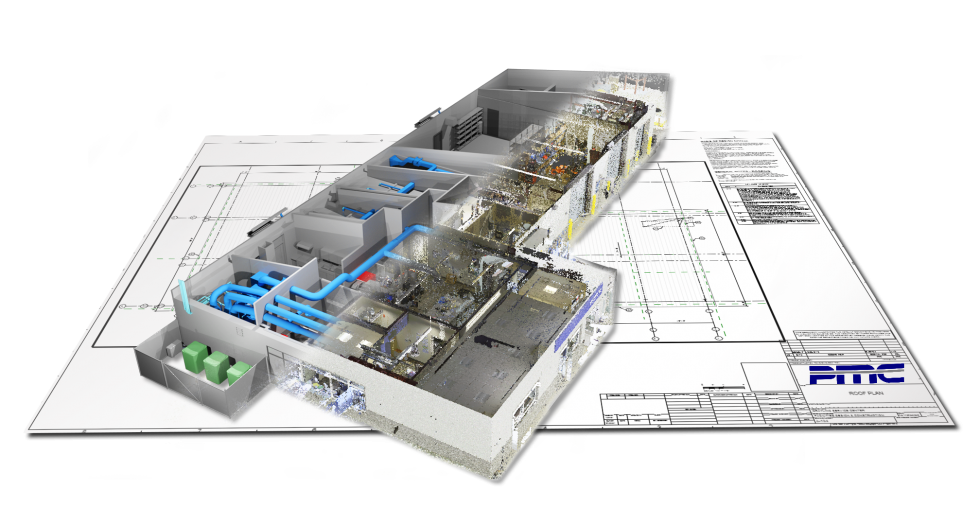

Increase ROI of your facility by creating an intelligent model for all project and asset data. Using the latest BIM standards, PMC can get the most out of your facility during its "building life cycle." PMC has a worldwide cotiere of engineers to handle any sized 3D modeling or BIM projects.
